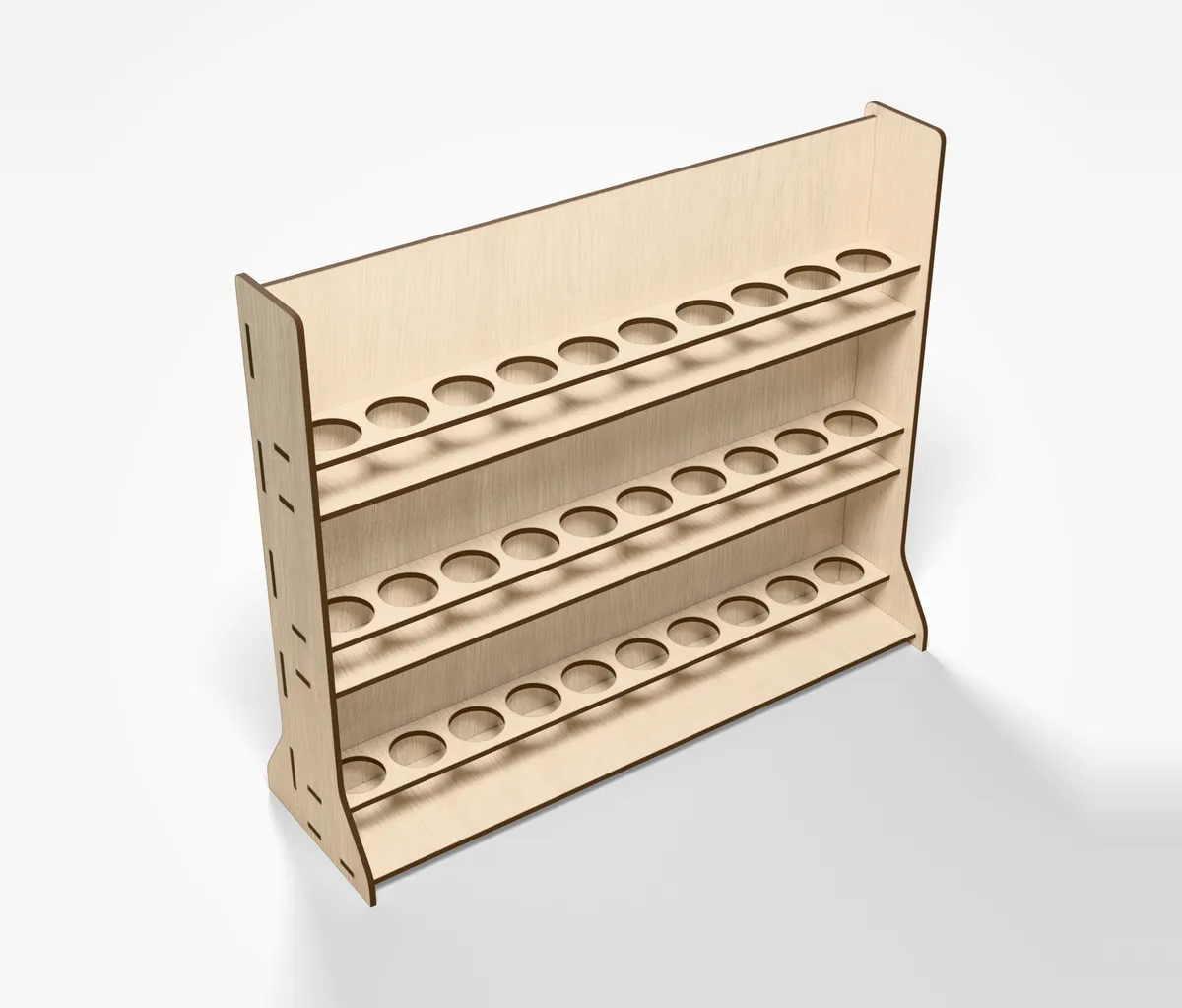

A rack sized around your paint bottles. Each row is a solid shelf with a plate above it, with a hole for every bottle, so they stand upright and come out easily. Rows can be straight or stepped like a pyramid, and a tall, shallow rack gets a wider base so it doesn't tip.
The editor
The Paint Rack editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Bottle diameter - 20-60 mm
- Bottle height - 40-150 mm
- Bottles per row - 2-15
- Bottles deep - 1-3
- Rows - 1-5
- Holding height - 10-60 mm
- Back - Full panel, Cross bars
- Row layout - Straight, Stepped (pyramid)
- Placement - Freestanding, Against a wall
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. The wall version has two 4.5 mm holes at the top for 4 mm screws.
