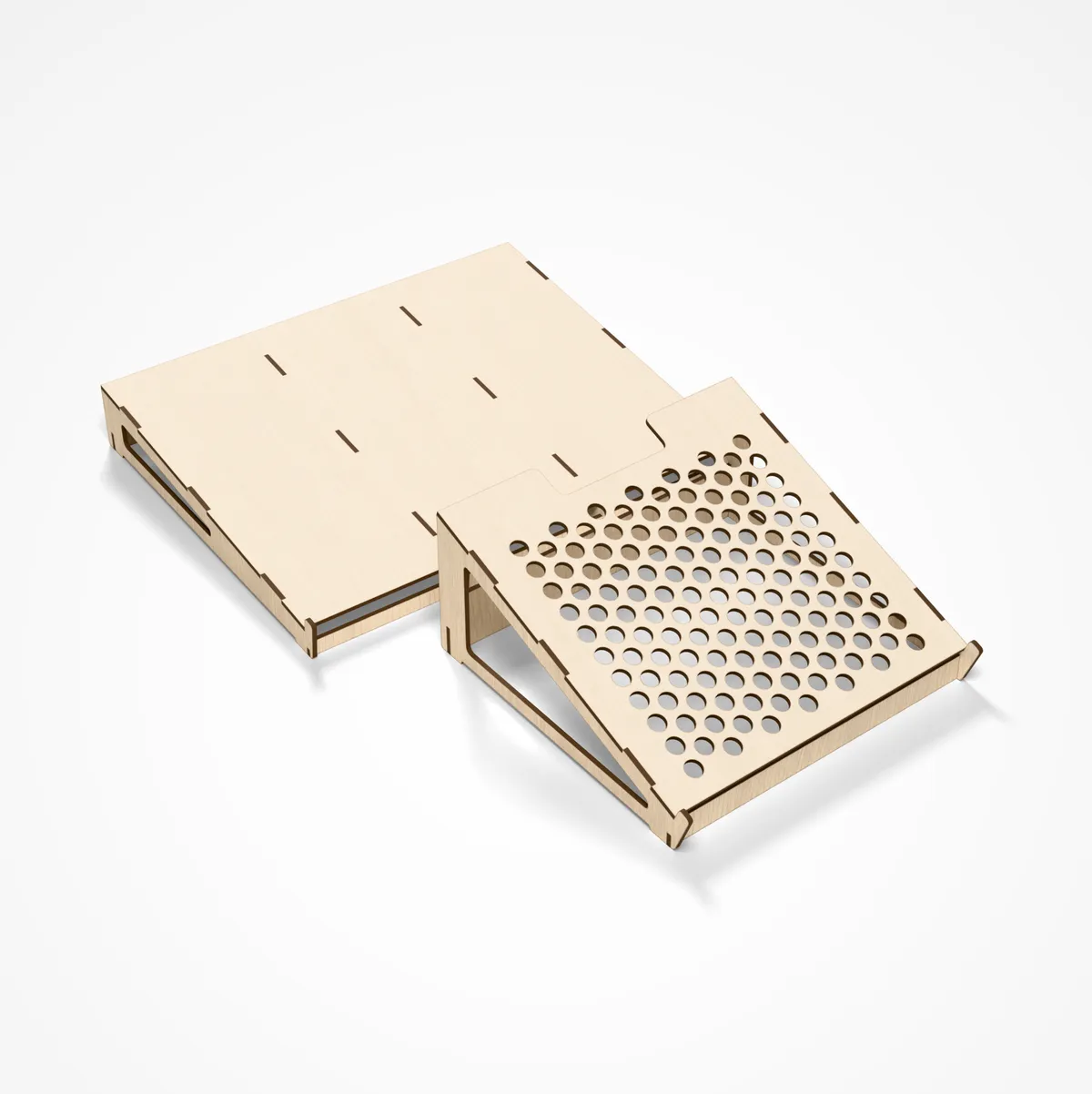

Raises the laptop and tilts it towards you. The top plate is vented with a honeycomb, circle or diamond pattern, the ribs end in a lip that stops the laptop sliding, and two bars underneath keep it from folding sideways.
The editor
The Laptop Stand editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Stand width - 150-450 mm
- Ribs - 2-6
- Depth - 150-350 mm
- Tilt - 0-25 °
- Front height - 15-60 mm
- Front lip - 4-20 mm
- Cable notch width - 0-150 mm
- Pattern - Honeycomb, Circles, Diamonds, None
- Pattern cell size - 8-40 mm
- Pattern rib width - 3-10 mm
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. Lay the bars notches up, press the ribs into them with the lips at the front, then put the top plate on the ribs.
