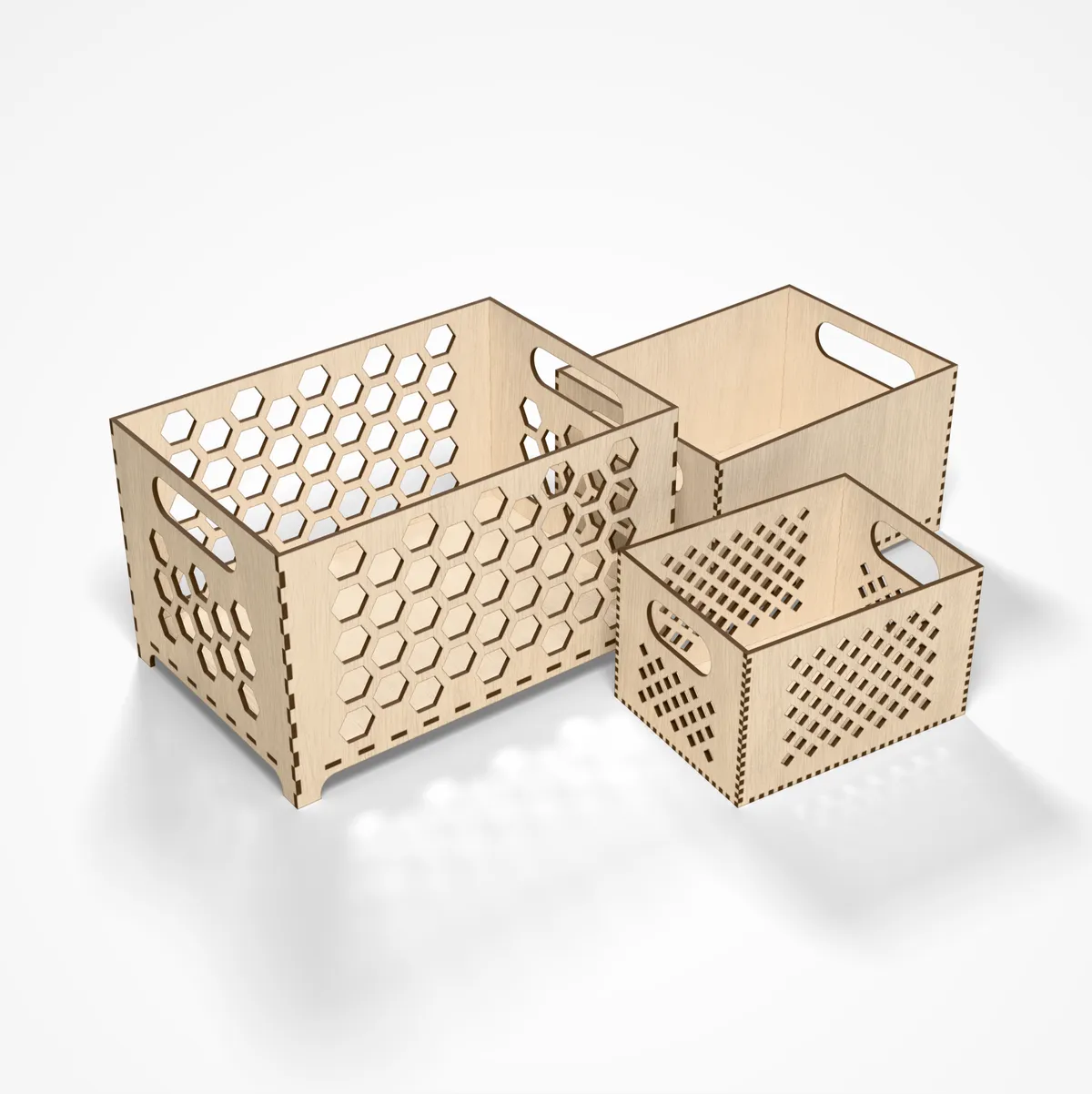

A sturdy crate for the shelf or the workshop. The floor sits on raised feet, the short sides have handle cut-outs, and the walls can carry a honeycomb, circle or diamond pattern. Add dividers if you need compartments.
The editor
The Crate with Handles editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Width - 80-600 mm
- Depth - 80-600 mm
- Height - 50-400 mm
- Feet height - 0-40 mm
- Handle width - 0-150 mm
- Handle height - 15-40 mm
- Handle from top - 6-60 mm
- Pattern - Honeycomb, Circles, Diamonds, None
- Pattern cell size - 0-60 mm
- Pattern rib width - 3-15 mm
- Columns - 1-8
- Rows - 1-8
- Divider height - 30-100 %
- Pattern on dividers - Yes, No
- Finger density - 1-50
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. Fit the walls together dry, cross the dividers if you have them, then slide the floor in from below so all the tabs go home.
