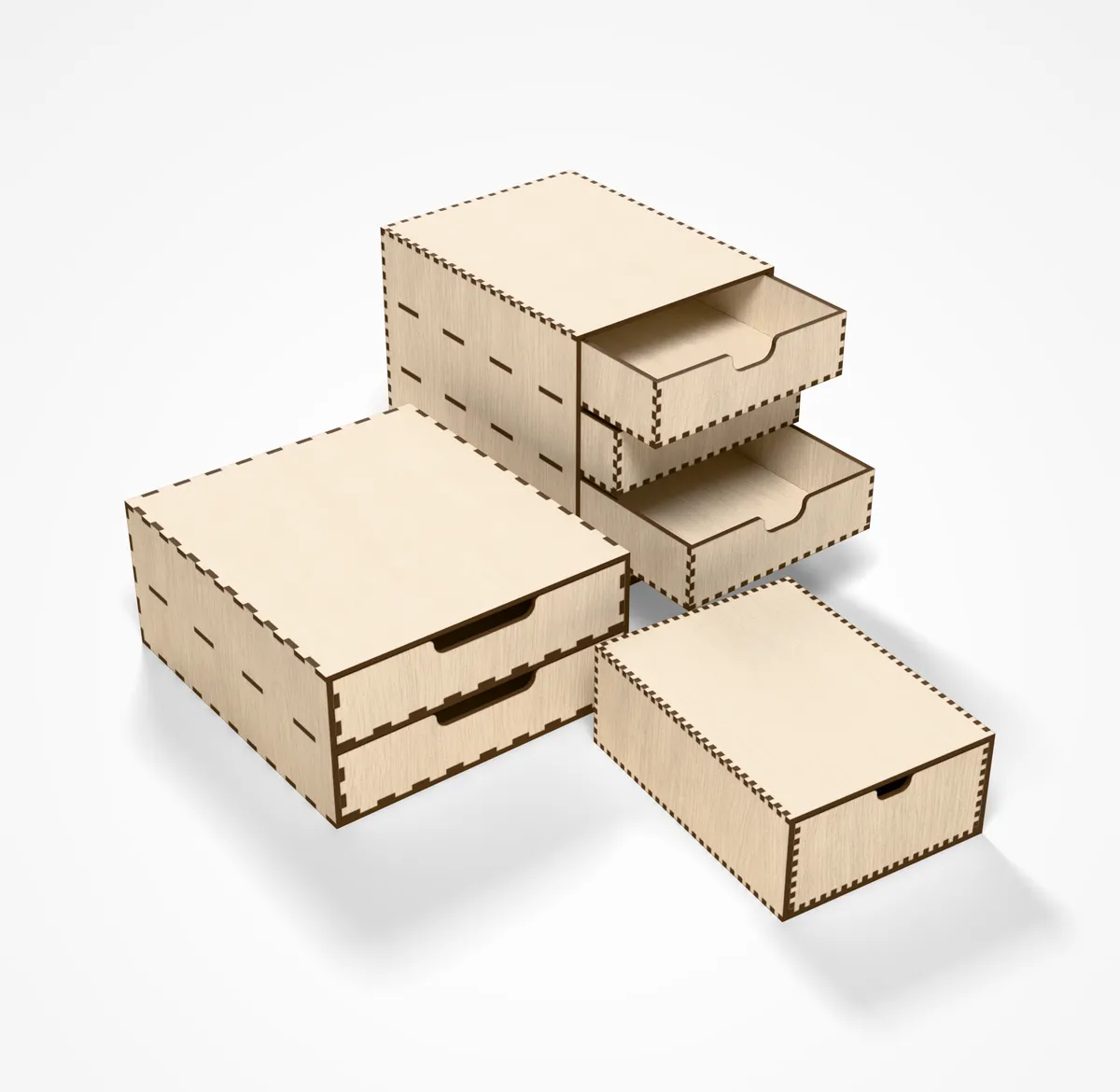

A case with drawers stacked one above the other, like a little chest of drawers for screws, stamps or SD cards. Every drawer is the same open box on finger joints, with a finger slot in the front.
The editor
The Drawer Box editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Width - 60-600 mm
- Depth - 60-600 mm
- Height - 40-400 mm
- Drawers - 1-5
- Drawer play - 0.1-1 mm
- Finger slot width - 0-80 mm
- Finger slot depth - 0-30 mm
- Drawers pulled out - 0-100 %
- Finger density - 1-50
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. Build the case first, shelves before the top, then the drawers. If they run tight, raise the play or the kerf compensation.
