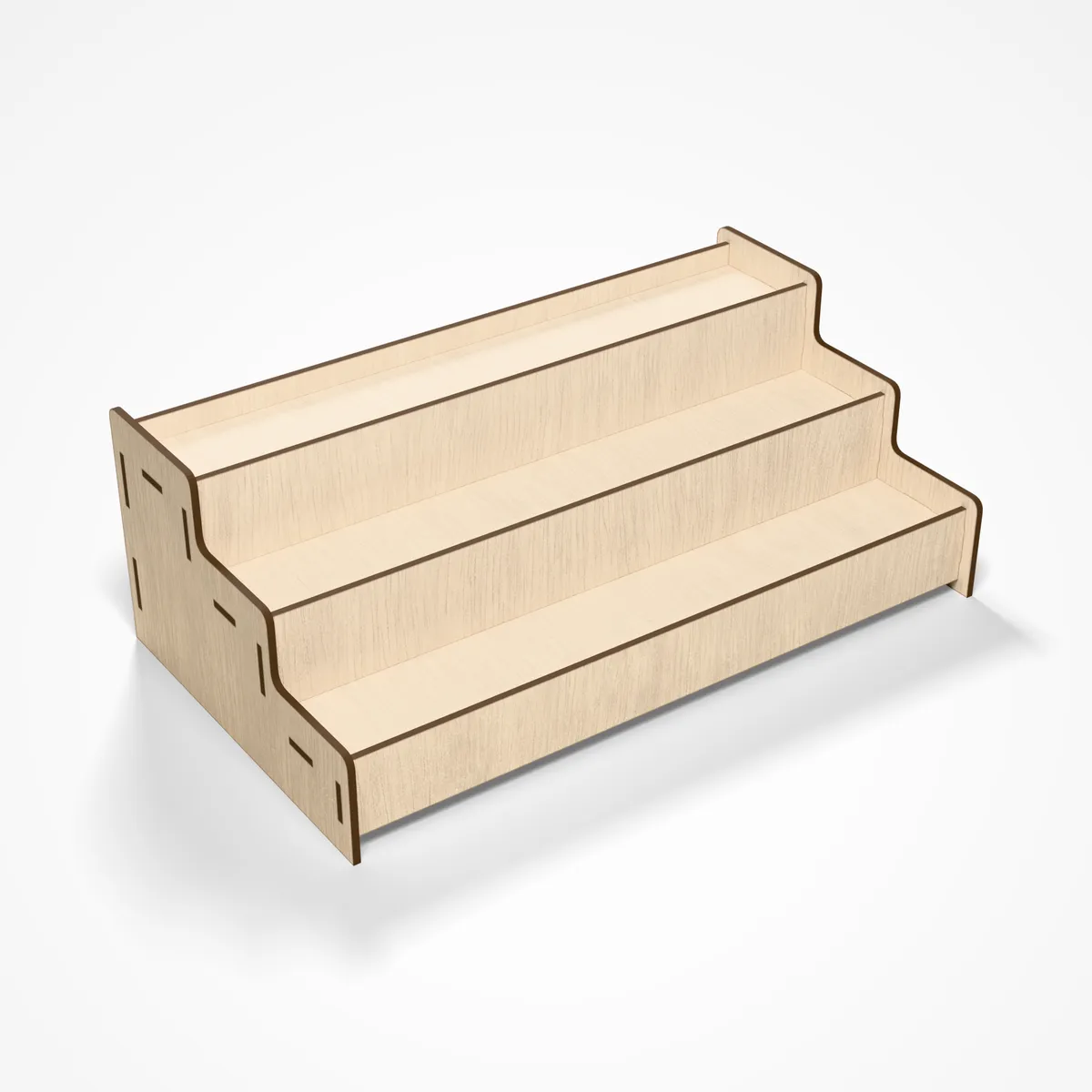

A spice rack built like a small amphitheatre: every row sits a step higher than the one in front, so you can read all the labels. You enter the jar, not millimetres - its diameter and how many fit in a row - and the rack is sized around it.
The editor
The Tiered Spice Rack editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Jars held by - Front rail, Plate with holes
- Jar diameter - 25-90 mm
- Jars per row - 1-12
- Rows - 2-5
- Step height - 15-80 mm
- Holding height - 3-25 mm
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. The rack is limited to 600 mm wide, the bed of most lasers; if it would come out wider, the generator puts fewer jars in a row.
