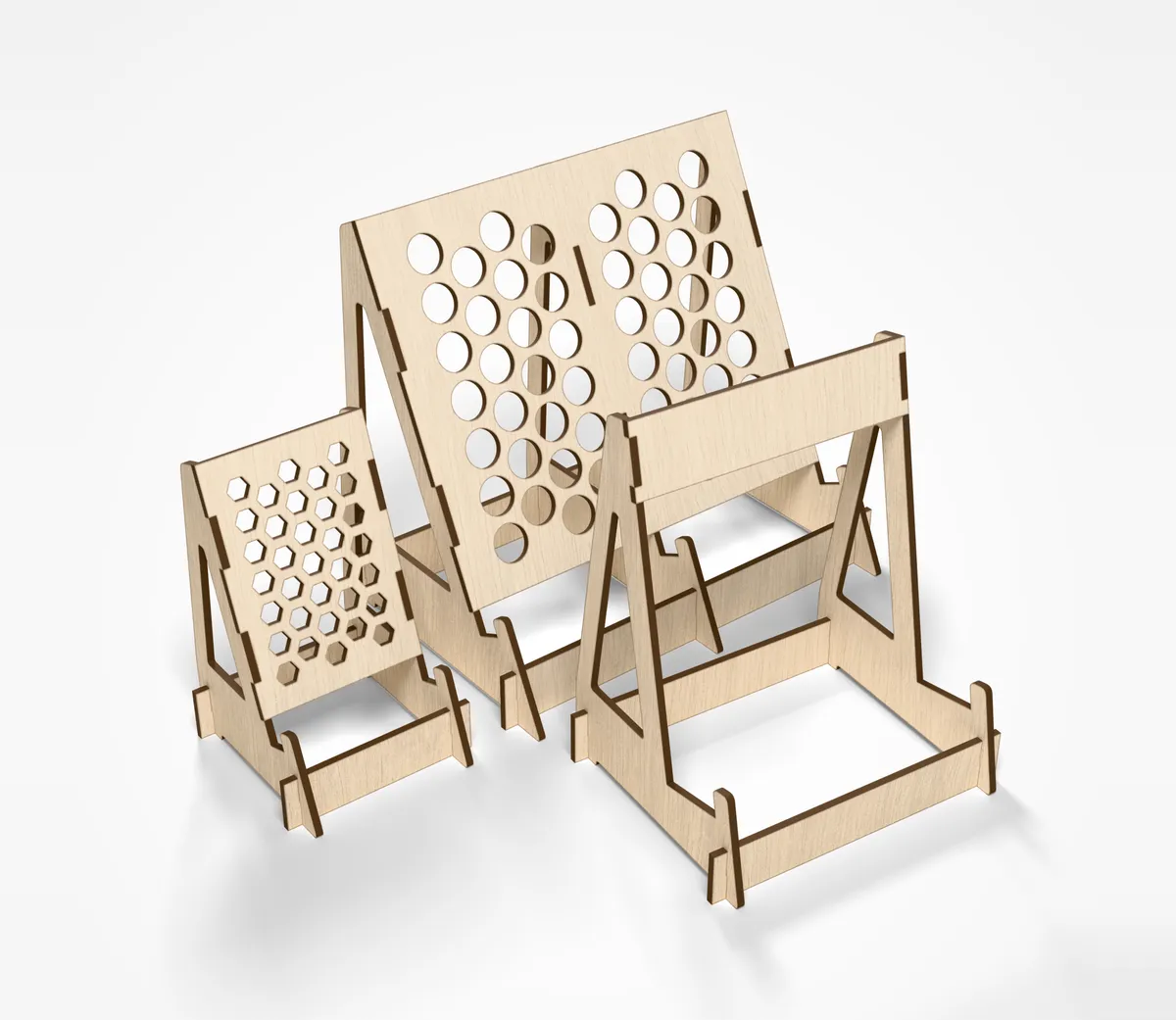

A stand that holds an item at the angle you choose. The item sits on a ledge square to the back, so it rests flat instead of on one edge, and there is room under it for a charging plug. Ribs, two cross bars and a back plate slot together without glue.
The editor
The Display Stand editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Stand width - 40-450 mm
- Ribs - 2-6
- Lean angle - 50-85 °
- Back support - 50-375 mm
- Item thickness - 5-45 mm
- Seat height - 15-60 mm
- Front lip - 3-20 mm
- Back plate - Yes, No
- Top bar width (no plate) - 10-60 mm
- Pattern - Honeycomb, Circles, Diamonds, None
- Pattern cell size - 8-40 mm
- Pattern rib width - 3-10 mm
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. Push the ribs into the cross bars, then set the back plate (or the top bar) onto the ribs. For a wide plate use three ribs or more.
