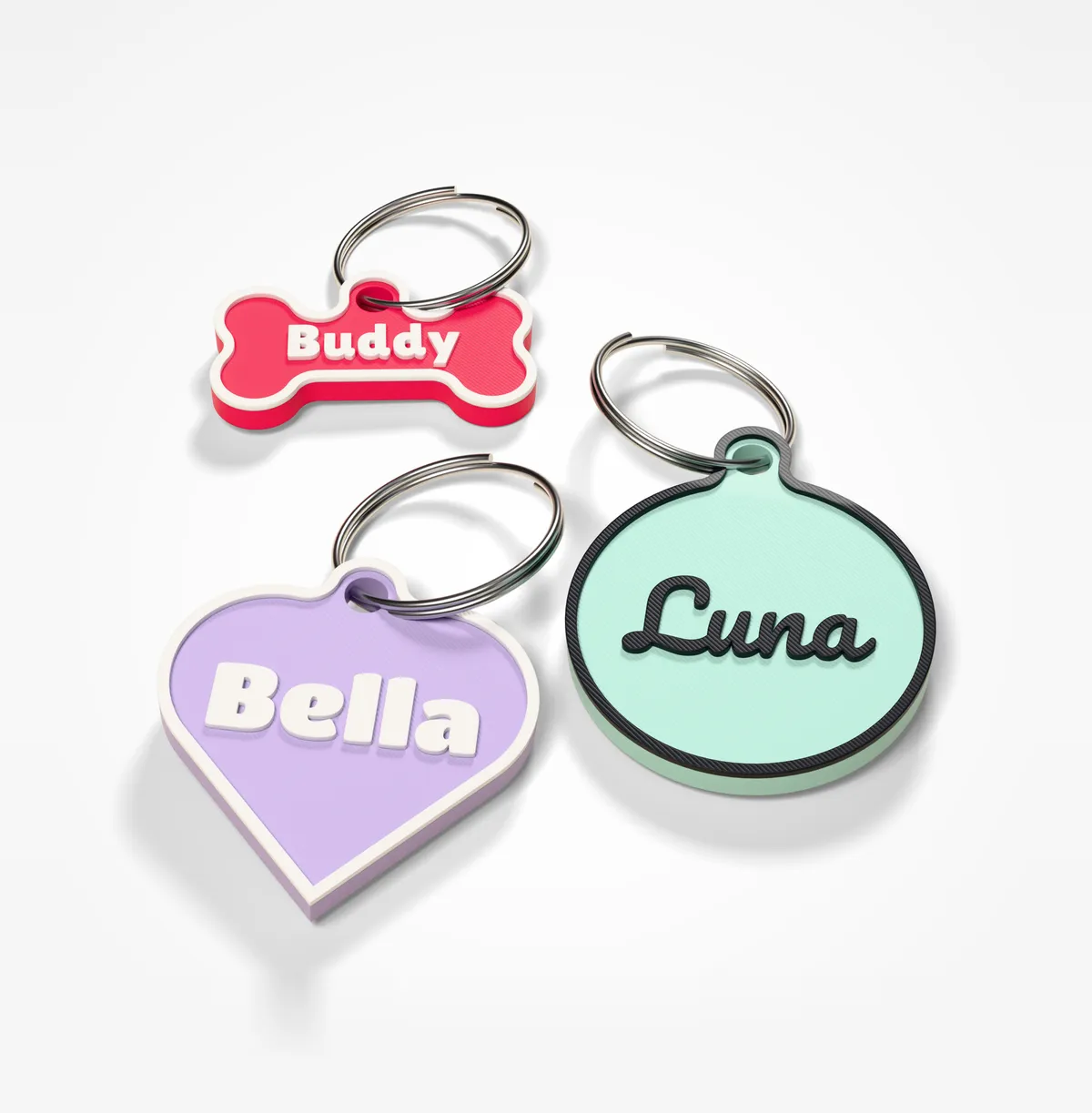

A collar tag with your pet's name on the front and a phone number on the back. Pick a bone, circle or heart, type the name, set the colors and download a 3MF that opens with the colors already split for Bambu Studio and OrcaSlicer, or a plain STL.
The editor

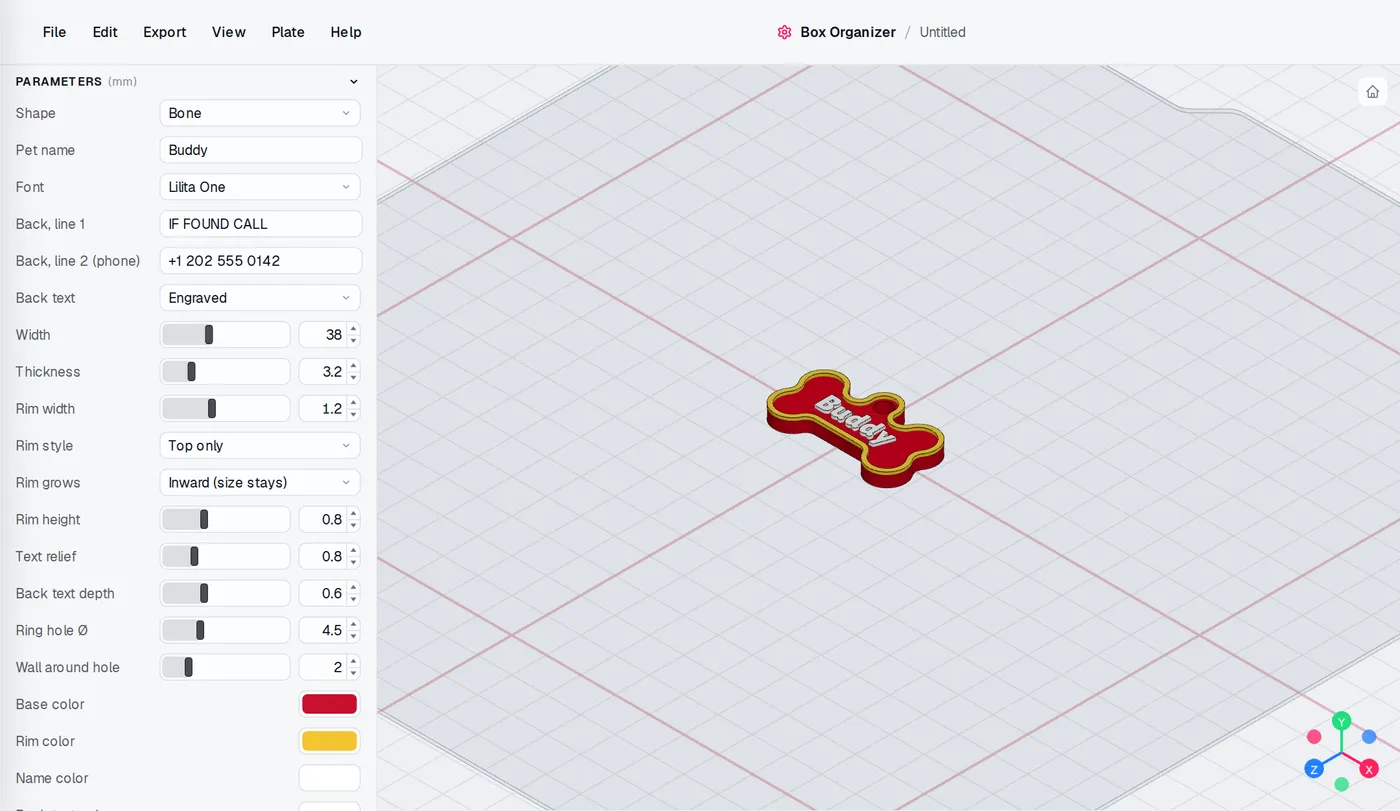

The Dog Tag editor: settings on the left, the model updates as you change them.
All settings
- Shape - Bone, Circle, Heart
- Pet name - your text, up to 16 characters
- Font - 12 fonts
- Back, line 1 - your text, up to 24 characters
- Back, line 2 (phone) - your text, up to 24 characters
- Back text - Engraved, Printed in color
- Width - 25-60 mm
- Thickness - 2.4-6 mm
- Rim width - 0-3 mm
- Rim style - Top only, Whole side (more color changes)
- Rim grows - Inward (size stays), Outward (tag gets bigger)
- Rim height - 0.2-2 mm
- Text relief - 0.4-2 mm
- Back text depth - 0.3-1.2 mm
- Ring hole Ø - 3-8 mm
- Wall around hole - 1.5-4 mm
- Base color - any colour
- Rim color - any colour
- Name color - any colour
- Back text color - any colour
Printing
Print it back side down, no supports needed. A dog chews and drags its tag around, so PETG lasts a lot longer than PLA. Keep it at least 3 mm thick and leave the wall around the hole at 2 mm or more.
