The text keychain, ten at a time. Add keychains one by one, give each its own text, font and colours, and download one 3MF with the whole plate. Keychains that use the same colour share one filament, so ten keychains in three colours still need just three.
The editor

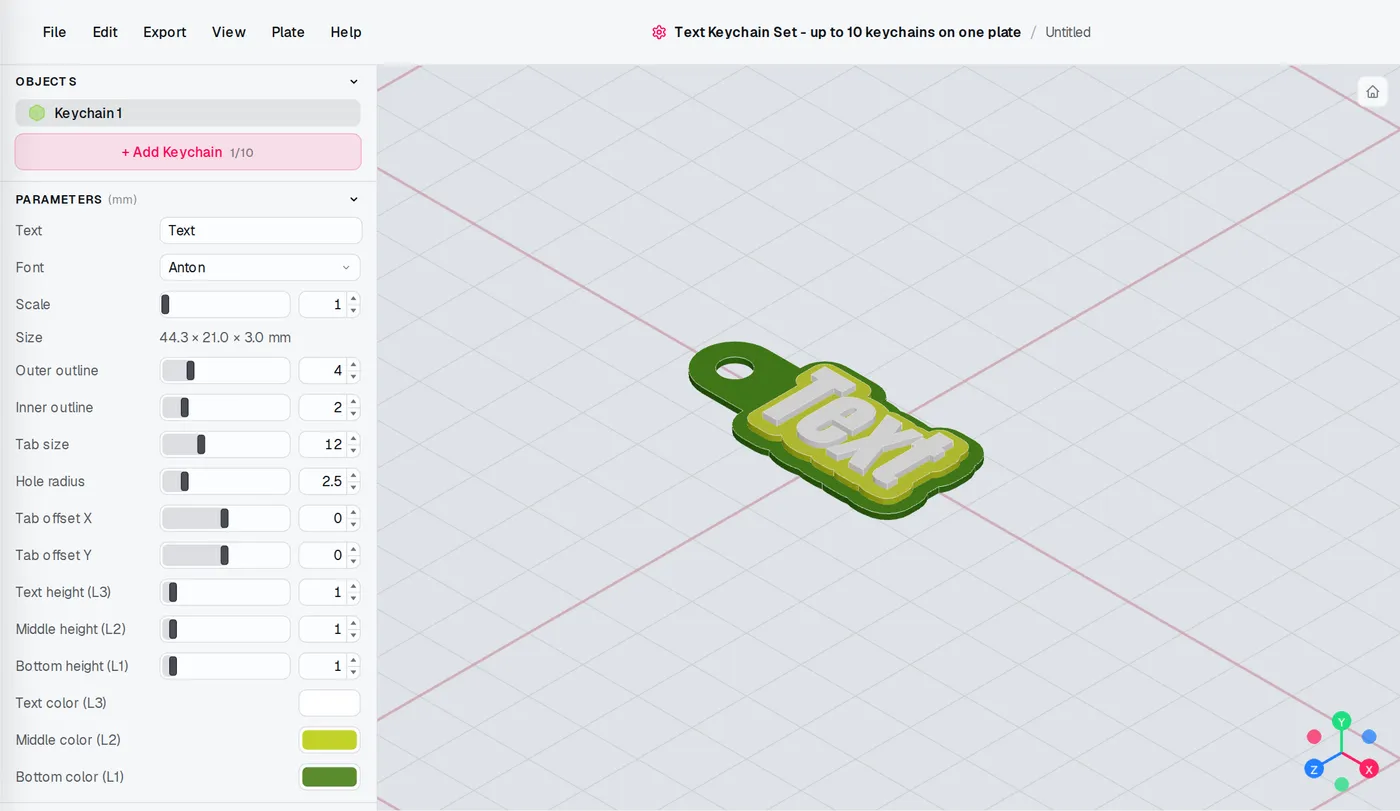

The Text Keychain Set editor: settings on the left, the model updates as you change them.
All settings
- Text - your text, up to 50 characters
- Font - 30 fonts
- Scale - 1-4
- Outer outline - 1-15 mm
- Inner outline - 0-12 mm
- Tab size - 4-30 mm
- Hole radius - 1-10 mm
- Tab offset X - -20-20 mm
- Tab offset Y - -20-20 mm
- Text height (L3) - 0.4-10 mm
- Middle height (L2) - 0.4-10 mm
- Bottom height (L1) - 0.4-10 mm
- Text color (L3) - any colour
- Middle color (L2) - any colour
- Bottom color (L1) - any colour
Printing
Print the plate flat, no supports. With an AMS the colours just print; with one nozzle keep the same layer heights on all keychains and swap filament at those heights.
Common use cases
- Party and wedding favours with each guest's name
- Team merch - every name in the same keychain style
- Batch prints for a marketplace shop
- Christmas tags, school bag tags, gym locker tags
Tips
- Auto-Nest (View menu, or the N key) packs the keychains tightly on the plate.
- Keep all keychains facing the same way for a cleaner multi-colour slice.
- Stick to two or three colour pairs - every extra colour means more AMS swaps.
- Ten keychains fit a 256 × 256 mm plate (Bambu A1) at roughly 60 × 25 mm each.
