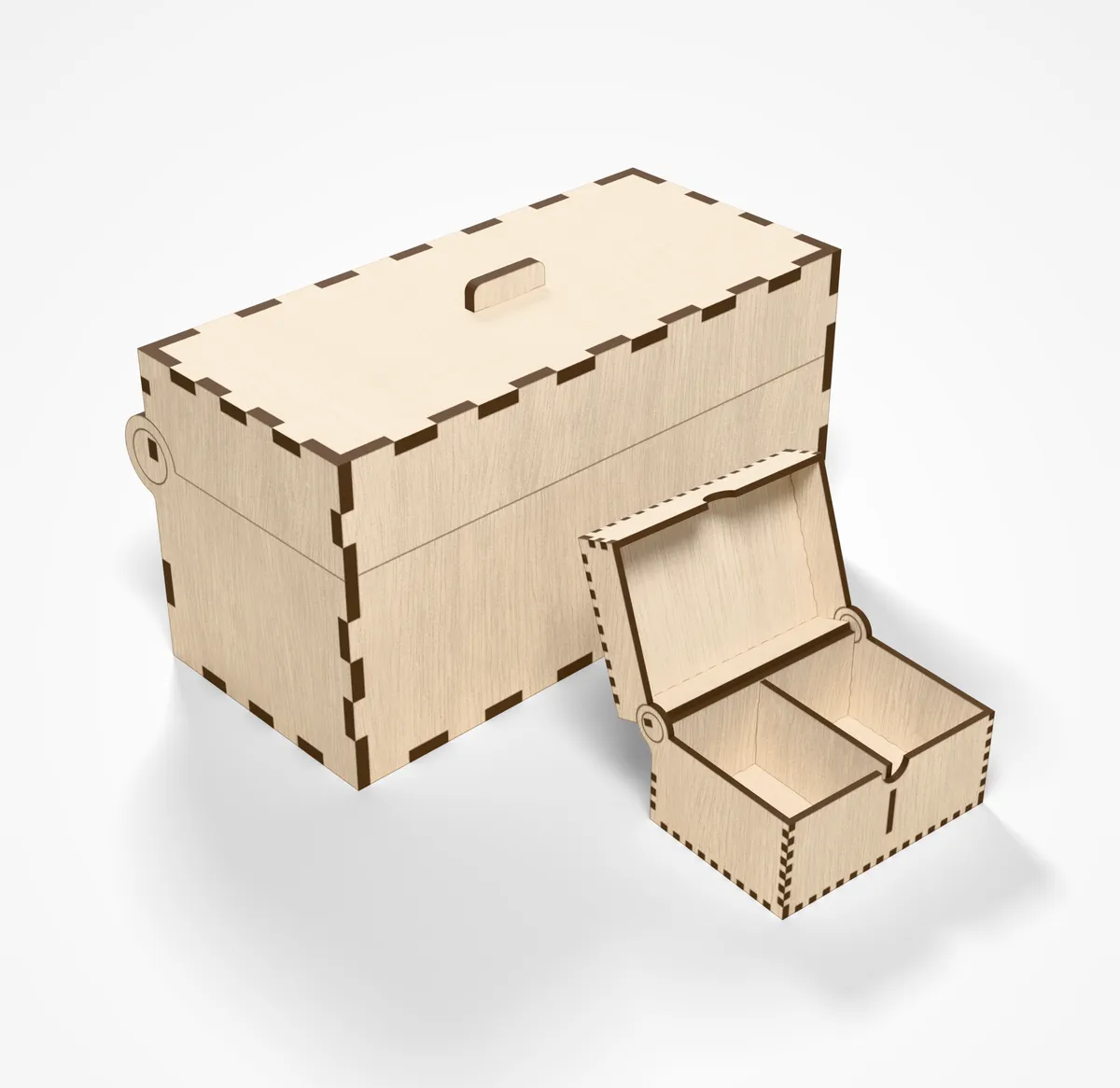

A small chest cut from one sheet: a box and a lid, both on finger joints, joined by a hinge made of the same plywood. On each side a round ear on the box holds a disc, the lid's back wall ends in pins that go through the discs, and the lid turns on them. No pins, no metal, nothing to buy.
The lid swings back past upright and rests there. Every corner is closed, so it looks clean from every side.
The editor

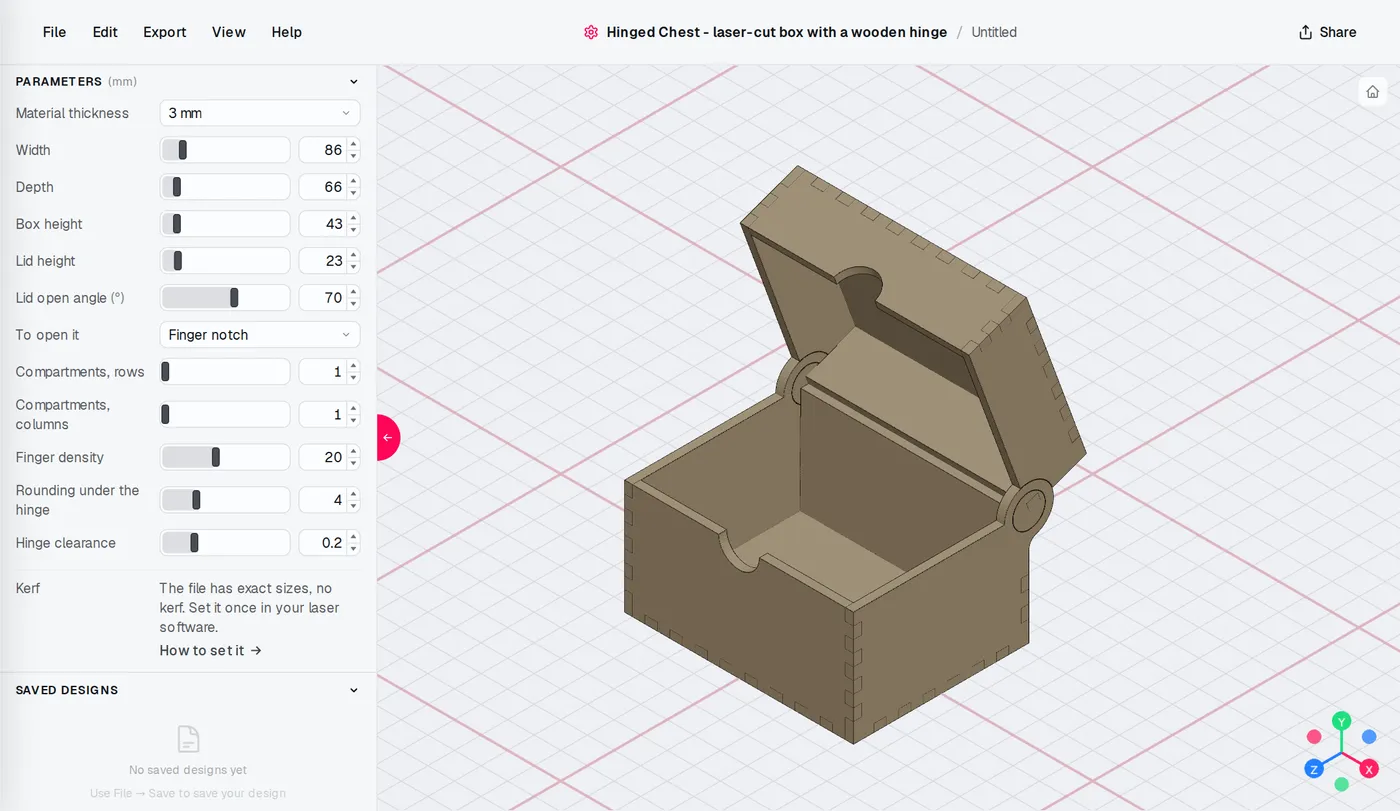

The Hinged Chest editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-7 mm
- Width - 30-400 mm
- Depth - 30-400 mm
- Box height - 15-300 mm
- Lid height - 8-150 mm
- Lid open angle - 0-120 °
- To open it - Finger notch, Handle at the front, Handle on the lid, Nothing
- Compartments, rows - 1-8
- Compartments, columns - 1-8
- Finger density - 5-40
- Rounding under the hinge - 0-15 mm
- Hinge clearance - 0.1-0.5 mm
Cutting and assembly
You get a ZIP with a DXF and an SVG: inner cuts blue, outlines red, part names green. Sizes are net - set the kerf in your laser software; the hinge clearance is the only gap in the file. Put the discs in the rings, glue the box and the lid, sliding the lid's back wall pins into the discs as you go. Keep glue away from the discs and rings.
