Your text on a keychain: the letters on top, a middle outline around them and a wider bottom outline with a tab for the ring. Each layer has its own colour and height, and the 3MF opens in Bambu Studio and OrcaSlicer with the colours already split.
The editor

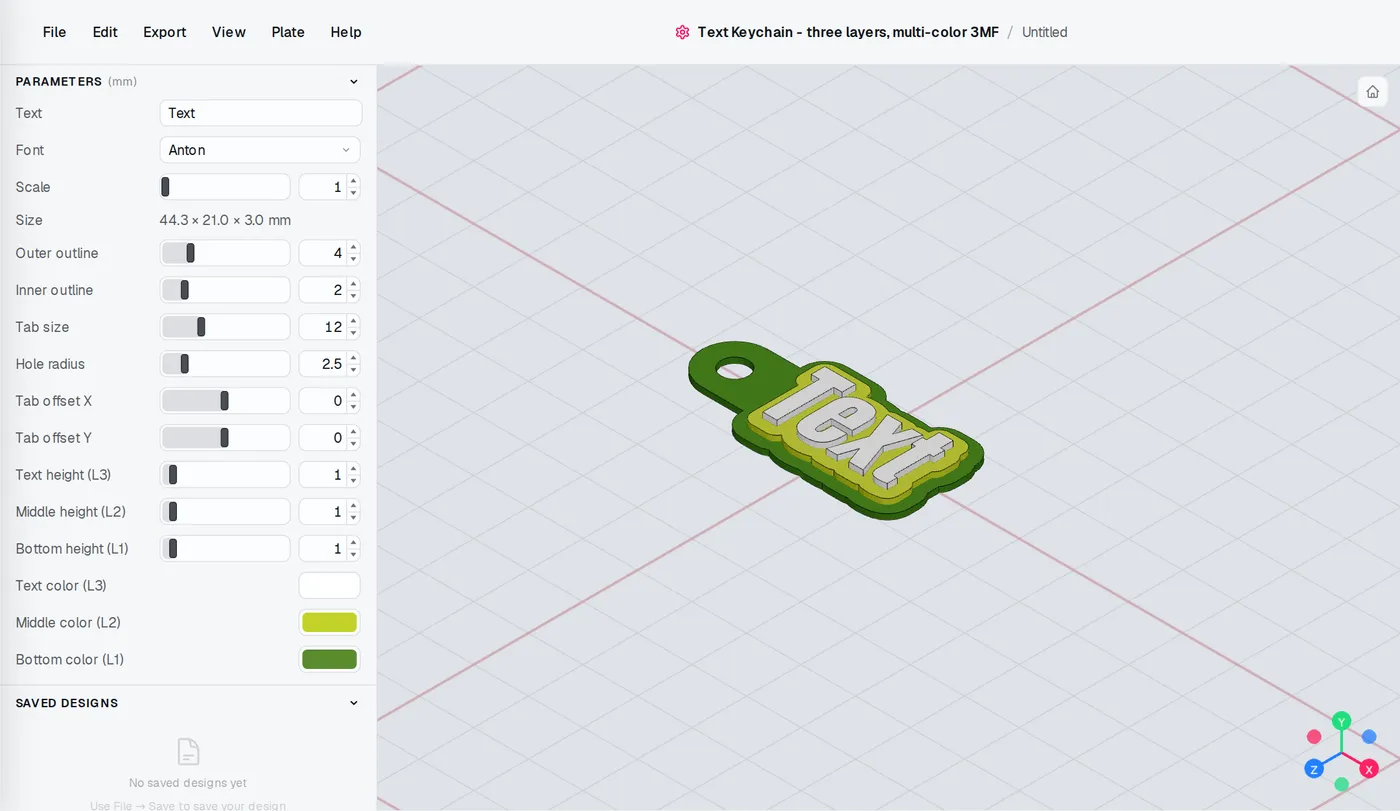

The Text Keychain editor: settings on the left, the model updates as you change them.
All settings
- Text - your text, up to 50 characters
- Font - 30 fonts
- Scale - 1-4
- Outer outline - 1-15 mm
- Inner outline - 0-12 mm
- Tab size - 4-30 mm
- Hole radius - 1-10 mm
- Tab offset X - -20-20 mm
- Tab offset Y - -20-20 mm
- Text height (L3) - 0.4-10 mm
- Middle height (L2) - 0.4-10 mm
- Bottom height (L1) - 0.4-10 mm
- Text color (L3) - any colour
- Middle color (L2) - any colour
- Bottom color (L1) - any colour
Printing
Print it flat, no supports. The layers are stacked, so you don't need an AMS: pause and swap filament where one layer ends and the next begins - two swaps for three colours.
Common use cases
- Bag, key and locker tags
- Gifts with a name or a short word
- Pet names for a collar ring
Tips
- Print it flat - the base touches the bed, the letters on top.
- Contrasting colours read best, e.g. a dark base and white letters.
- Short text (three to eight letters) reads cleanest at the default size; raise Scale for longer words.
