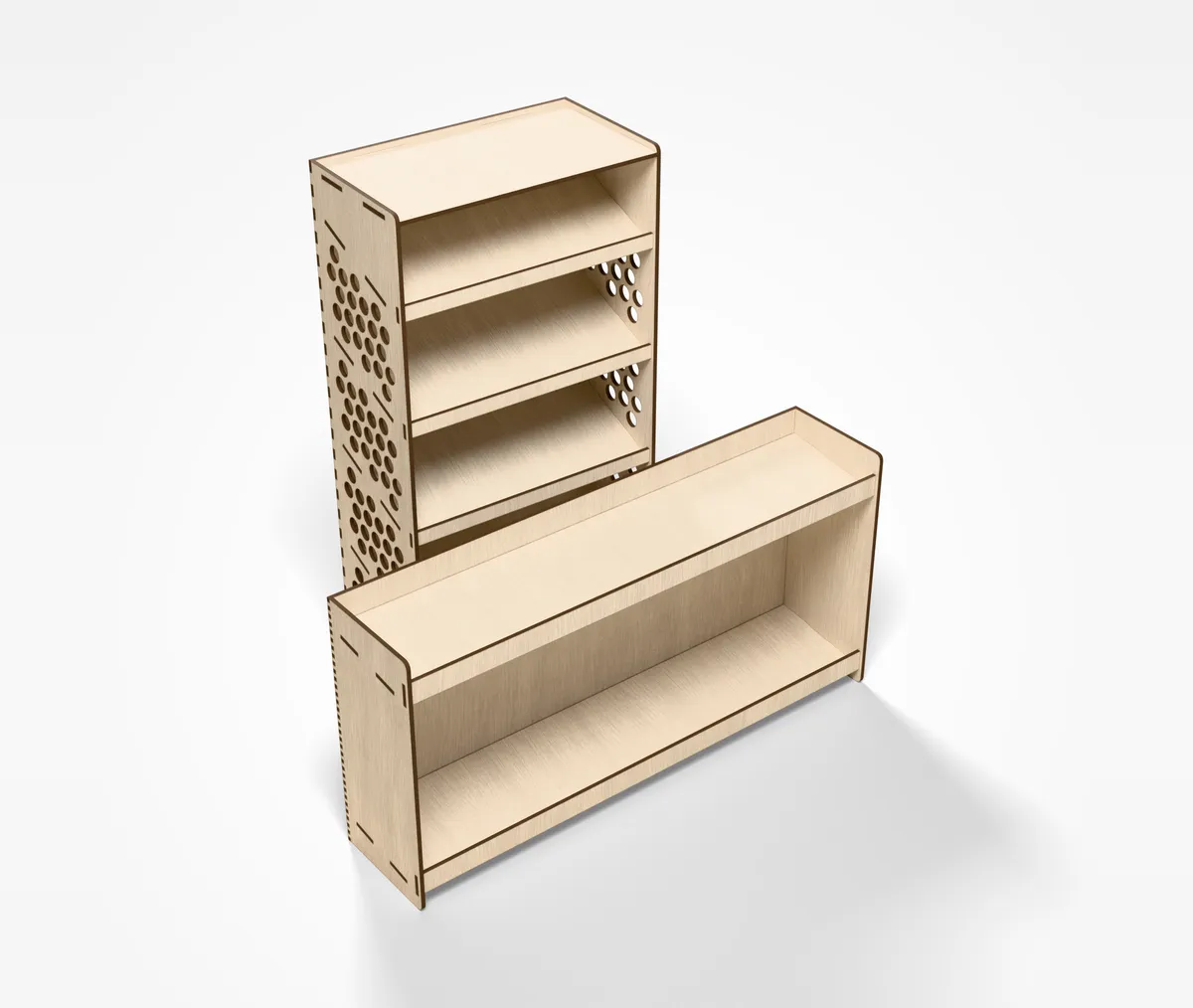

A shelf for figures, minerals, paints or anything you want to see from the front. Every shelf leans towards you and has a lip so nothing slides off. If a shelf would leave too little room above it, the generator uses fewer shelves.
The editor
The Display Shelf editor: settings on the left, the model updates as you change them.
All settings
- Material thickness - 3-6.5 mm
- Width - 100-600 mm
- Height - 100-600 mm
- Depth - 50-300 mm
- Shelves - 2-6
- Shelf tilt - 0-30 °
- Front lip - 3-20 mm
- Top panel - Yes, No
- Pattern - None, Honeycomb, Circles, Diamonds
- Pattern cell size - 8-40 mm
- Pattern rib width - 3-10 mm
- Finger density - 1-50
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. Fit the back to one side, slide in the lips and shelves, add the top, then press the second side onto all the tabs at once. Glue once everything fits.
