A pen holder that is the name itself. The letters grow into a soft bubble outline, and that outline is the container: pens, pencils and scissors go in from the top, and dividers between the letters keep them apart. It stands flat on the desk whatever the name does at the bottom, descenders included. A classic gift for a kid's desk, a teacher or a colleague.
The editor

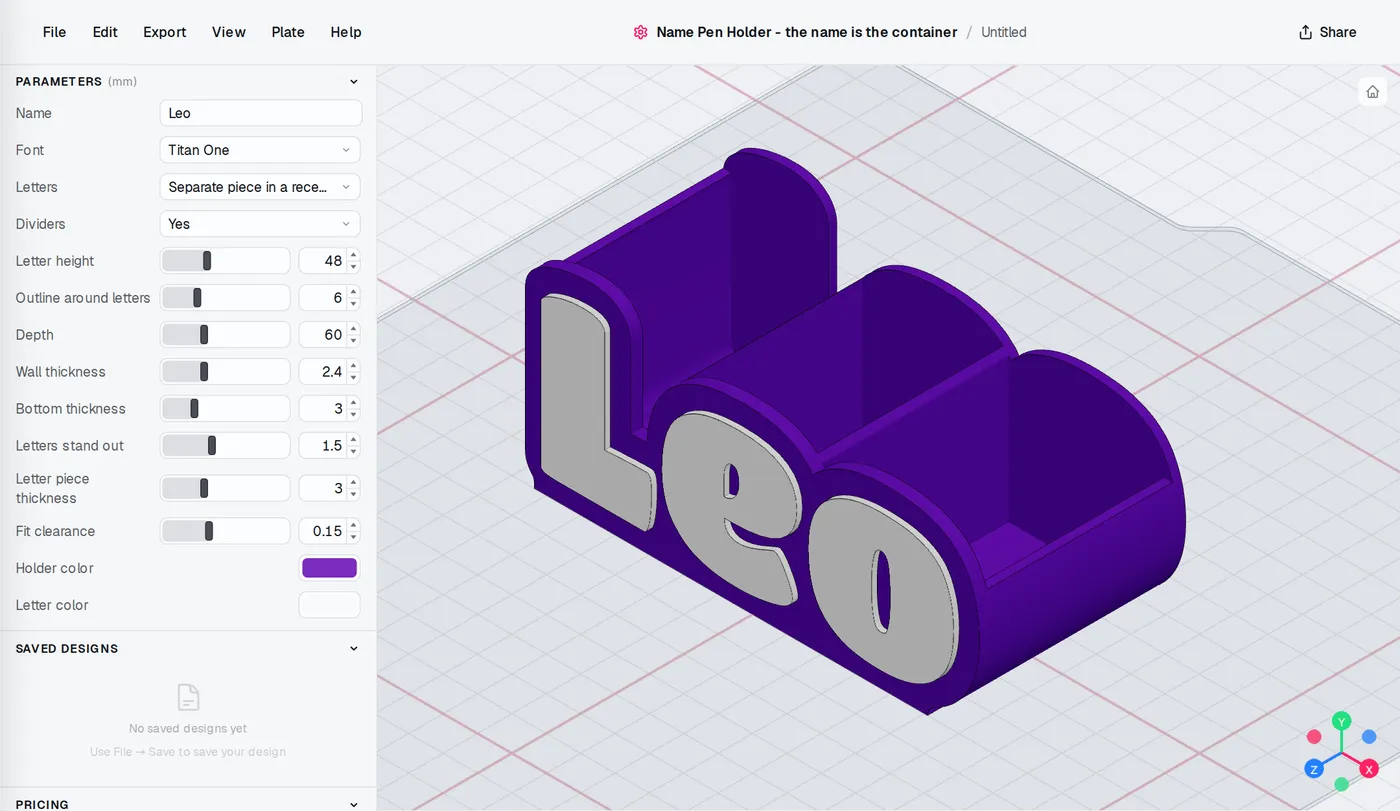

The Name Pen Holder editor: settings on the left, the model updates as you change them.
All settings
- Name - your text, up to 12 characters
- Font - 8 fonts
- Letters - Separate piece in a recess, 2 colors; Separate piece on pegs, 2 colors; Raised, one piece
- Dividers - Yes, No
- Letter height - 25-90 mm
- Outline around letters - 3-14 mm
- Depth - 35-110 mm
- Wall thickness - 1.6-4 mm
- Bottom thickness - 2-6 mm
- Letters stand out - 0.5-3 mm
- Letter piece thickness - 2-5 mm
- Fit clearance - 0-0.4 mm
- Holder color - any colour
- Letter color - any colour
Printing
Two objects in one file: the holder standing up, open at the top, and the letters lying flat. No supports. Print them in two colors and press the letters into the recess on the front; if they are too tight or too loose, change the clearance and download again.
