Your number plate shrunk to a keychain. Type the registration and the country code, pick the colours of the frame, band, plate and lettering, and download a 3MF with the colours split for Bambu Studio and OrcaSlicer. The defaults look like a European plate; change the colours for any other.
The editor

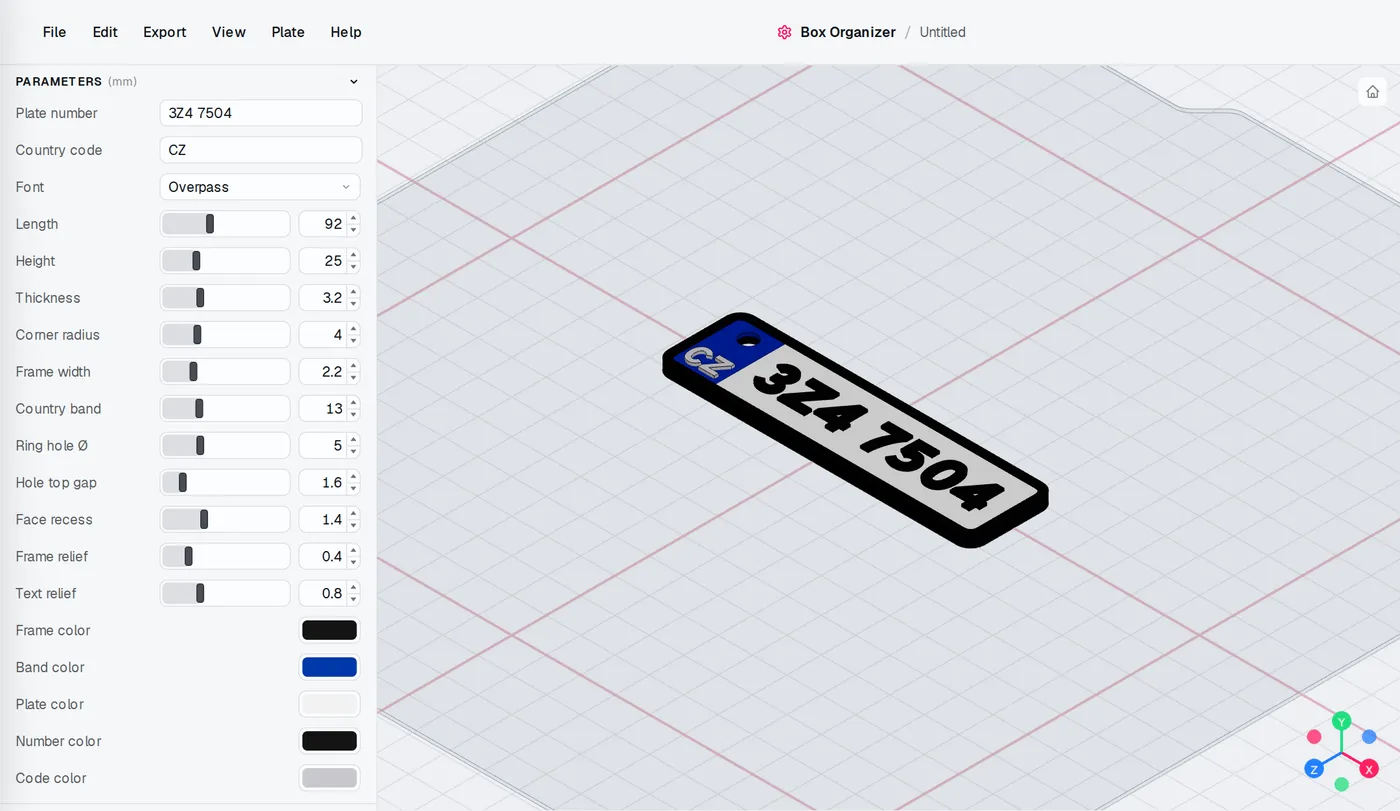

The License Plate Keychain editor: settings on the left, the model updates as you change them.
All settings
- Plate number - your text, up to 12 characters
- Country code - your text, up to 4 characters
- Font - 8 fonts
- Length - 50-160 mm
- Height - 16-50 mm
- Thickness - 2-6 mm
- Corner radius - 1-12 mm
- Frame width - 1-6 mm
- Country band - 6-30 mm
- Ring hole Ø - 2-12 mm
- Hole top gap - 0.5-8 mm
- Face recess - 0.6-3 mm
- Frame relief - 0-2 mm
- Text relief - 0.3-2 mm
- Frame color - any colour
- Band color - any colour
- Plate color - any colour
- Number color - any colour
- Code color - any colour
Printing
Print it flat, face up, no supports. Five colours are easiest with an AMS. With a single nozzle, give the frame, band and plate one colour and print the characters in a second one.
