About this generator

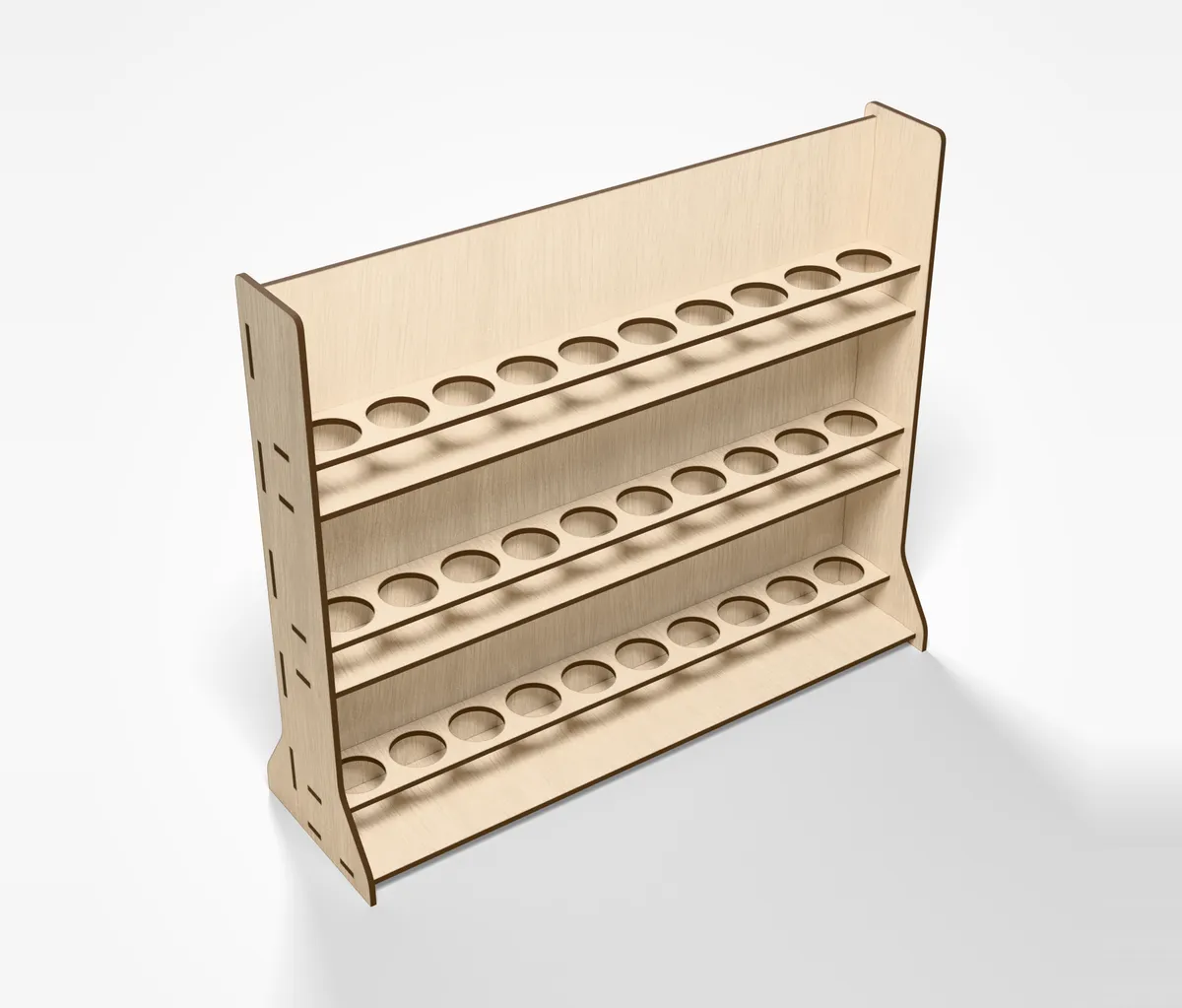

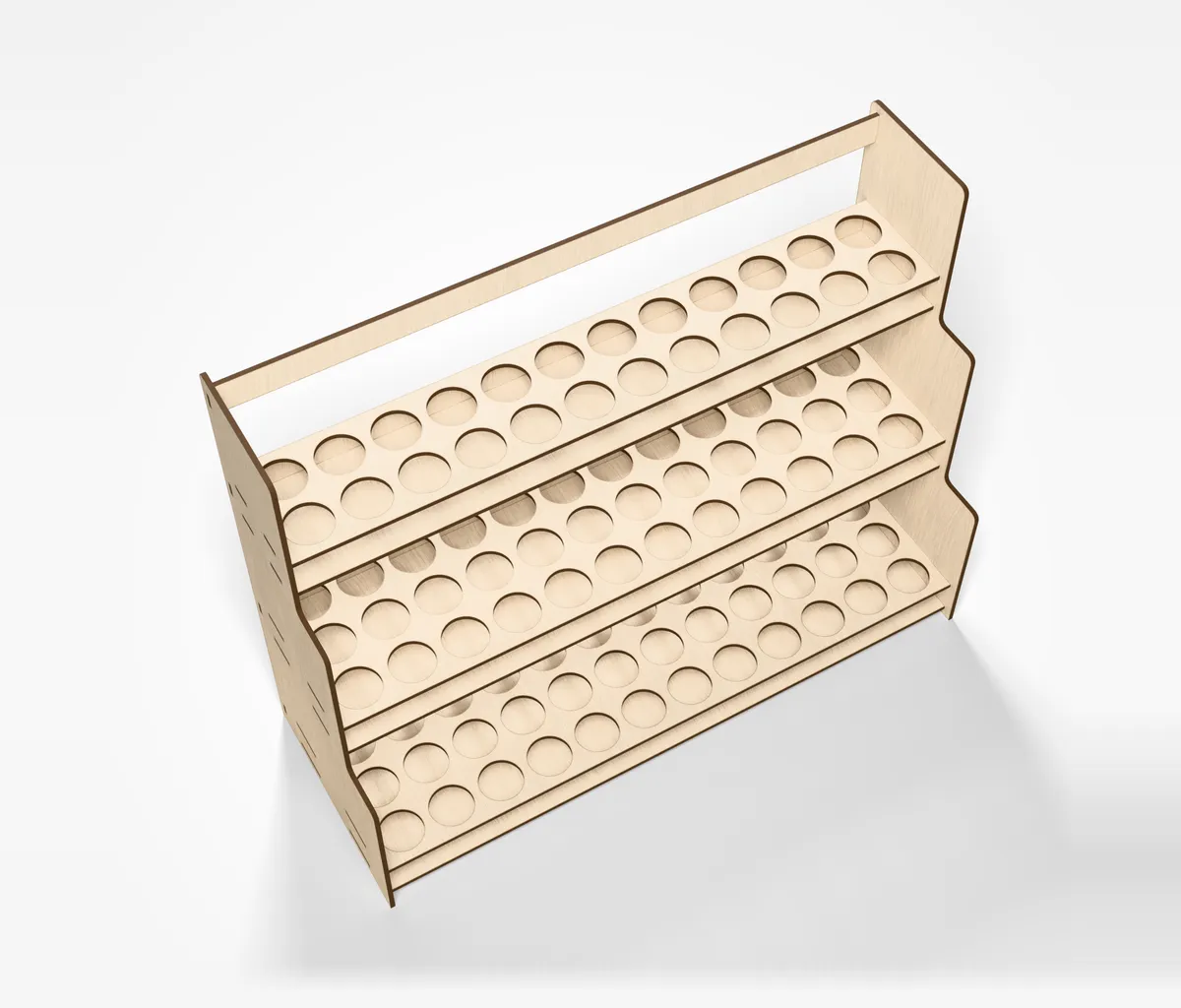

A rack sized around your paint bottles. Each row is a solid shelf with a plate above it, with a hole for every bottle, so they stand upright and come out easily. Rows can be straight or stepped like a pyramid, and a tall, shallow rack gets a wider base so it doesn't tip.
What you can change
- Material - 3 to 6.35 mm
- Bottles - 20 to 60 mm across, 40 to 150 mm tall
- Layout - 2 to 15 per row, 1 to 3 deep, 1 to 5 rows, straight or stepped
- Holding height - where the holed plate sits
- Back - a full panel or cross bars
- Placement - freestanding, or against a wall with screw holes
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is black, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. The wall version has two 4.5 mm holes at the top for 4 mm screws.
Frequently asked questions
Which file formats can I download?
Paint Rack - hobby paint bottles in rows, straight or stepped exports as DXF, SVG. STL works in any slicer (Bambu Studio, OrcaSlicer, PrusaSlicer, Cura). 3MF preserves multi-color metadata for AMS / MMU-equipped printers.
Is this generator free to use?
Costs 15 credits per download. New accounts get 30 free credits, enough to try it before buying anything.
Can I customize the dimensions and details?
Yes — all parameters (size, walls, hole grid, chamfer, color) are live-adjustable in the browser. The 3D preview updates instantly as you tweak sliders.
Do I need an account?
An account lets you save drafts, sync settings across devices, and use the free daily quota. Browse and preview without one — login only required for download.
