About this generator

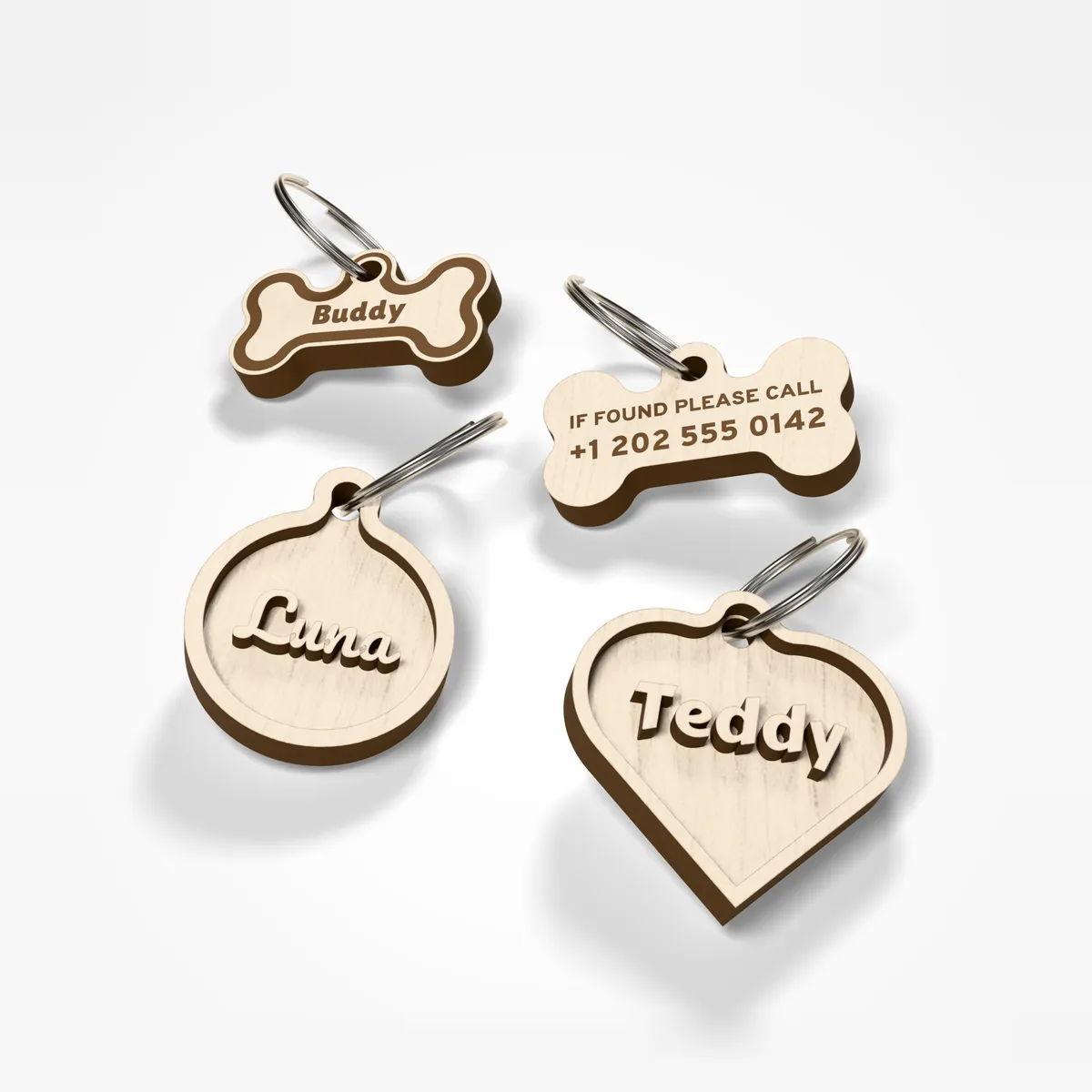

The pet tag cut from plywood or acrylic instead of printed. A laser only engraves from above, so the tag is two plates of the same shape glued back to back: the back plate carries your phone number engraved, and you flip it when gluing so the engraving faces out. The front carries the pet's name.
What you can change

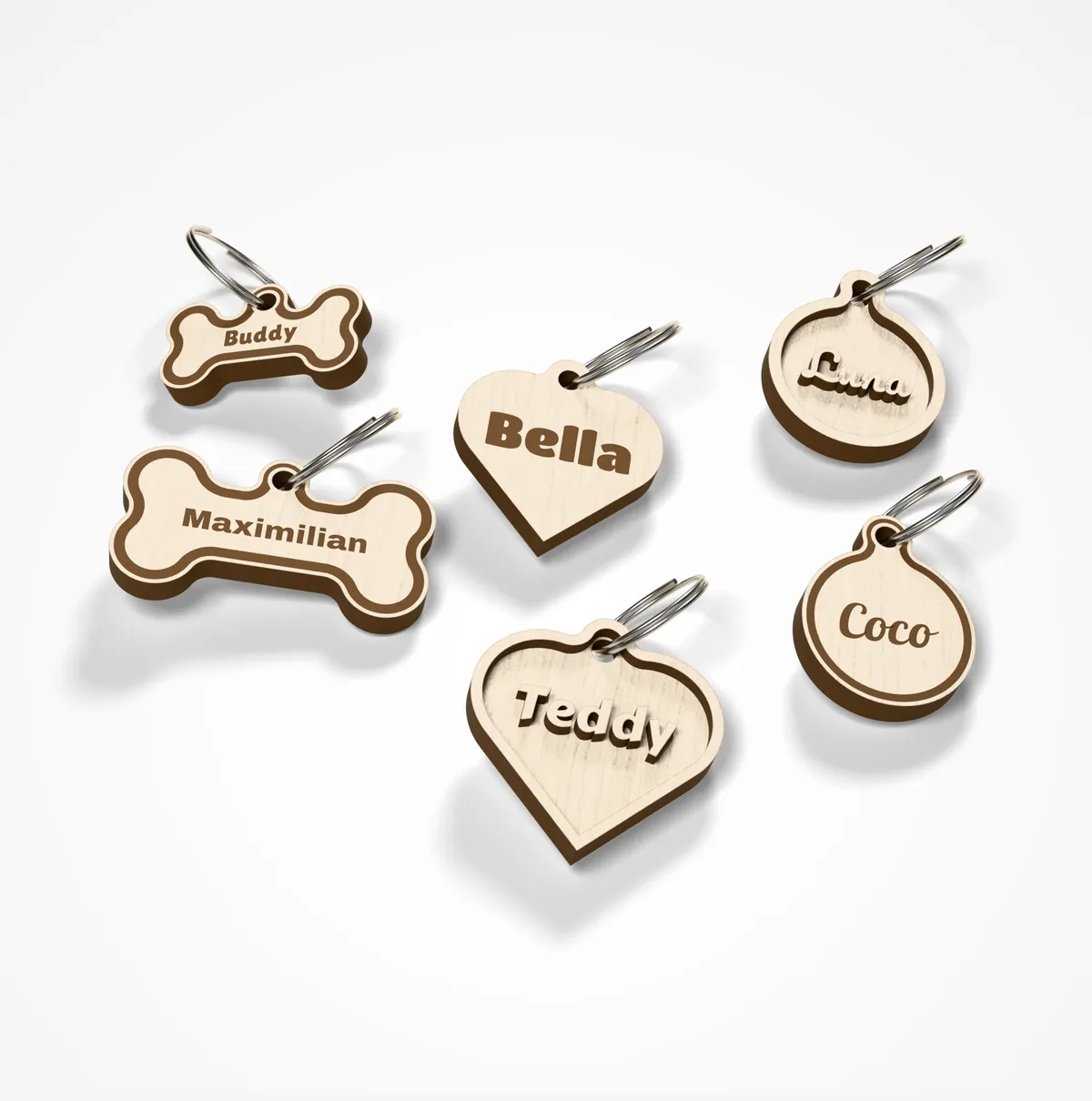

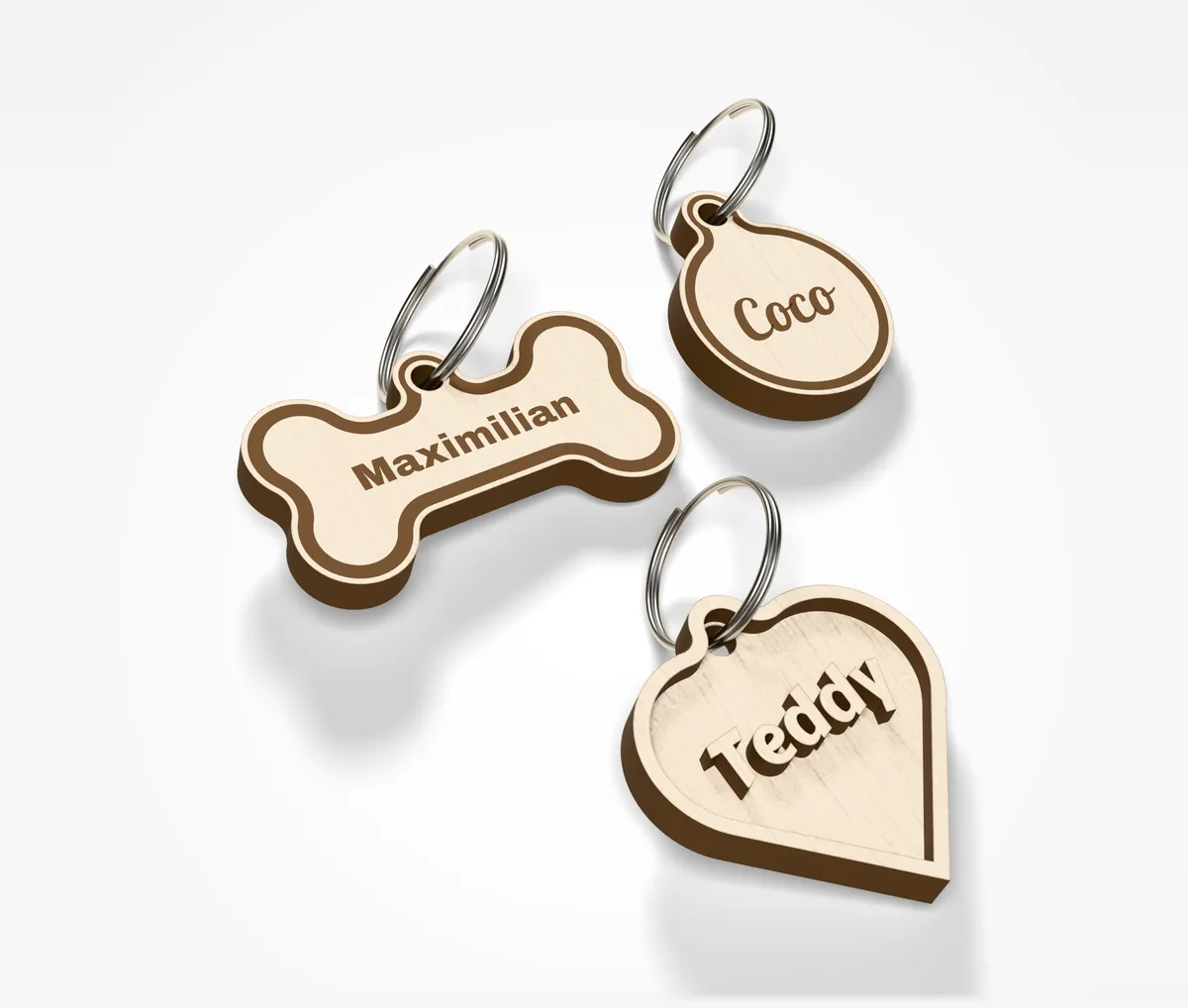

- Shape - bone, circle or heart, 25 to 80 mm wide
- Name - the pet's name in 12 bold fonts
- Back - two lines, engraved on the back plate

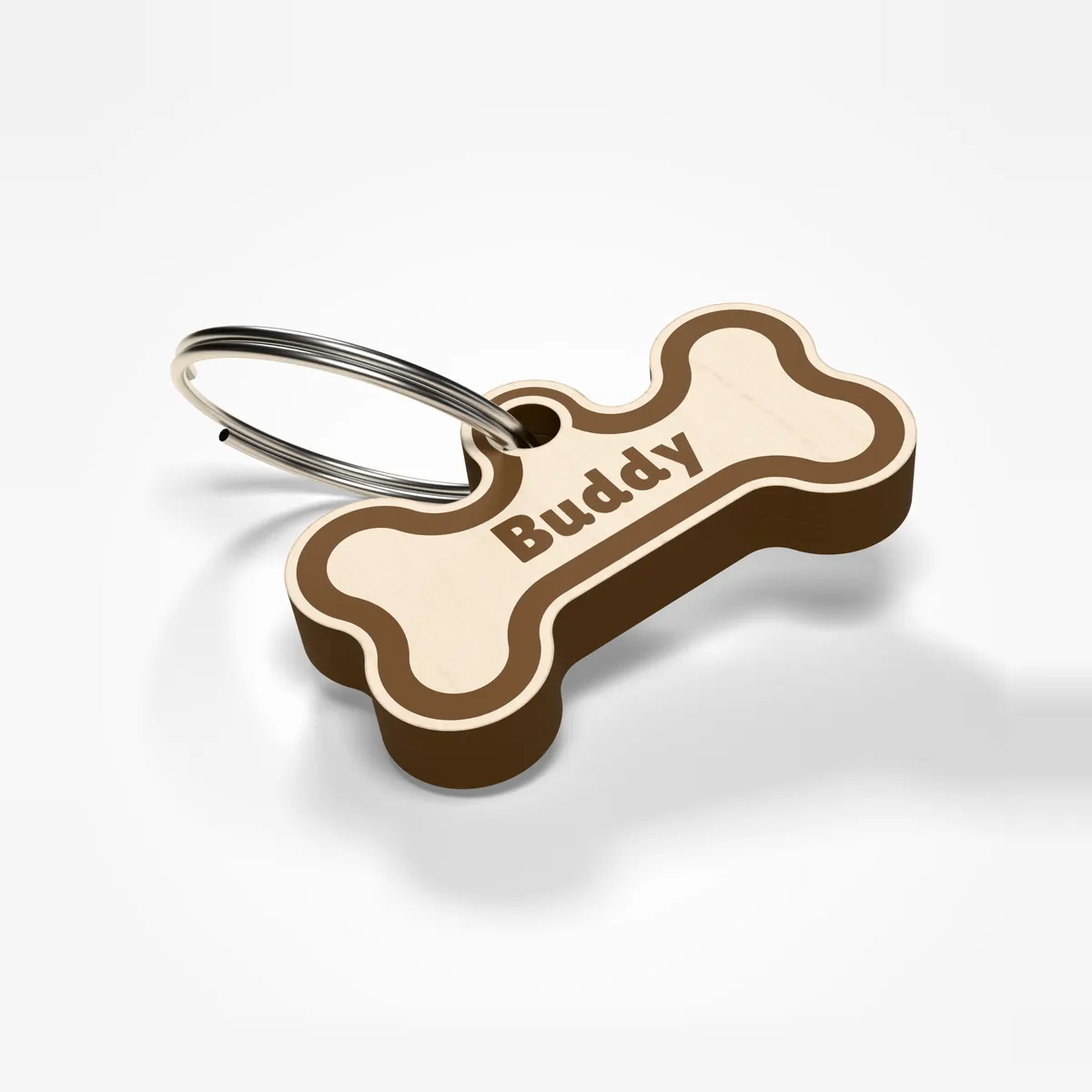

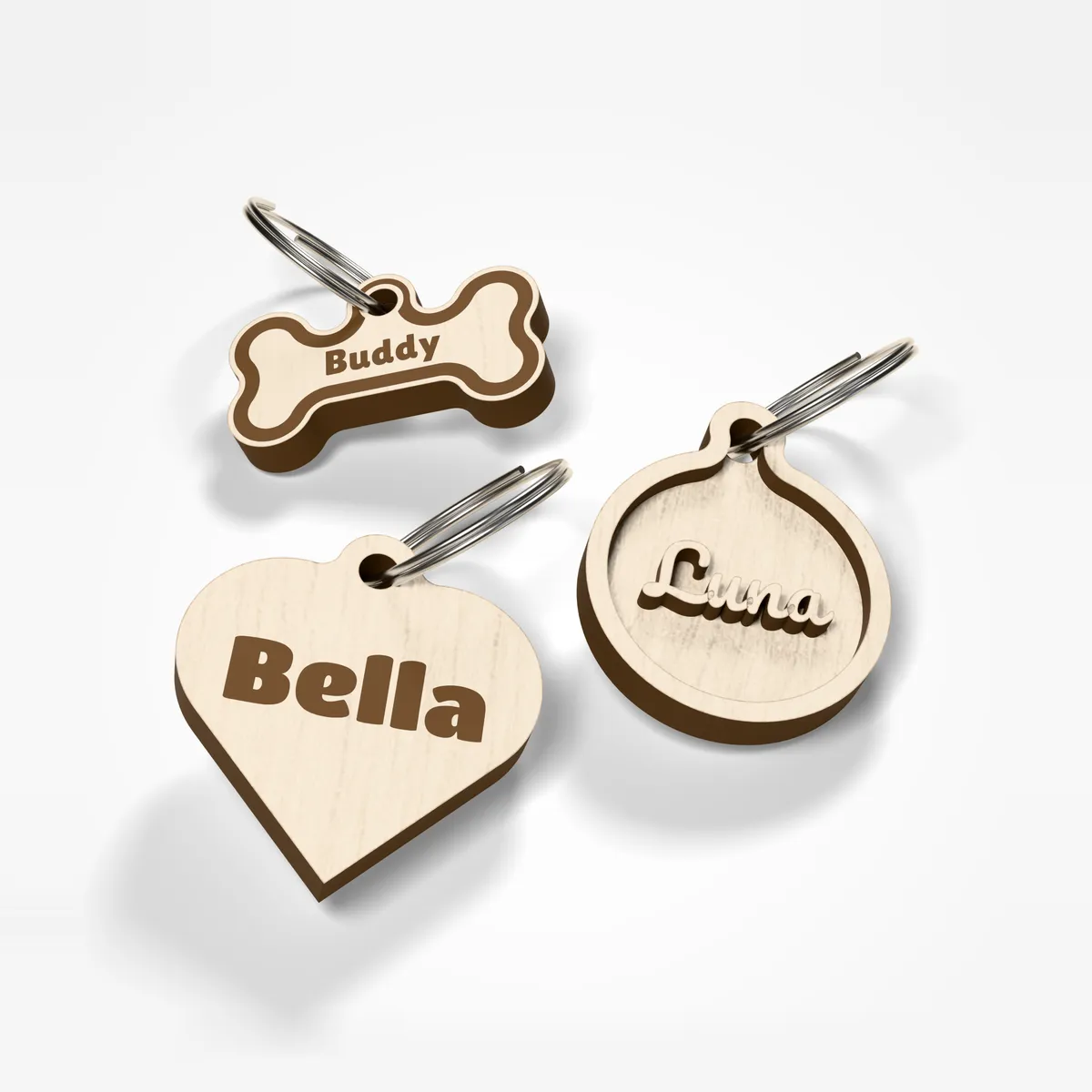

- Front - the name and rim engraved on a front plate, or cut out and glued straight onto the back plate
- Rim - 0 to 3 mm; a cut rim is at least 2 mm so it doesn't snap
- Ring hole - size and the wall around it
- Material - 3 to 6 mm
Cutting and assembly
You get a ZIP with a DXF and an SVG. Engraving is orange, inner cuts are blue, outlines red and part names green, so LightBurn imports them as separate layers in the right order. Sizes are net - set the kerf in your laser software, not here. Engrave and cut, then glue the back plate engraving out. The shapes are symmetric, so the plates match after the flip. Small tags make small letters - below about 40 mm, engrave the name rather than cutting it.
Frequently asked questions
Which file formats can I download?
Laser-Cut Dog Tag - two plates, name and phone engraved exports as DXF, SVG. STL works in any slicer (Bambu Studio, OrcaSlicer, PrusaSlicer, Cura). 3MF preserves multi-color metadata for AMS / MMU-equipped printers.
Is this generator free to use?
Yes, with a free account: 5 files a day and 30 a month, counted together across all free generators. No credit card needed. Past that, a file costs 3 credits.
Can I customize the dimensions and details?
Yes — all parameters (size, walls, hole grid, chamfer, color) are live-adjustable in the browser. The 3D preview updates instantly as you tweak sliders.
Do I need an account?
An account lets you save drafts, sync settings across devices, and use the free daily quota. Browse and preview without one — login only required for download.
